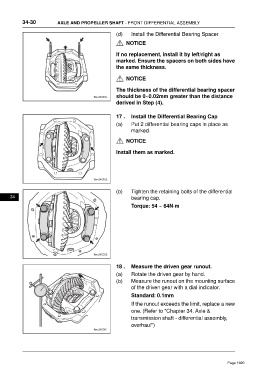

Page 1690 - Foton Workshop Manual - Tunland (AT)

34-30 AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY

(d) Install the Differential Bearing Spacer

NOTICE

If no replacement, install it by left/right as
marked. Ensure the spacers on both sides have
the same thickness.

NOTICE

The thickness of the differential bearing spacer
should be 0~0.02mm greater than the distance
derived in Step (4).

17 . Install the Differential Bearing Cap
(a) Put 2 differential bearing caps in place as
marked.

NOTICE

Install them as marked.

(b) Tighten the retaining bolts of the differential
34 bearing cap.

Torque: 54 ~ 64N·m

18 . Measure the driven gear runout.
(a) Rotate the driven gear by hand.
(b) Measure the runout on the mounting surface
of the driven gear with a dial indicator.
Standard: 0.1mm
If the runout exceeds the limit, replace a new
one. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")
