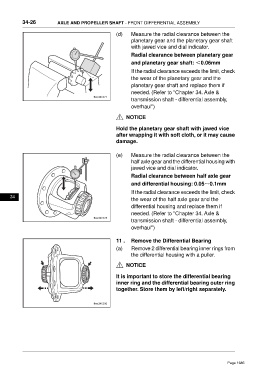

34-26 AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY

(d) Measure the radial clearance between the
planetary gear and the planetary gear shaft
with jawed vice and dial indicator.
Radial clearance between planetary gear
and planetary gear shaft: ＜0.06mm

If the radial clearance exceeds the limit, check
the wear of the planetary gear and the
planetary gear shaft and replace them if
needed. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")
NOTICE

Hold the planetary gear shaft with jawed vice
after wrapping it with soft cloth, or it may cause
damage.

(e) Measure the radial clearance between the
half axle gear and the differential housing with
jawed vice and dial indicator.
Radial clearance between half axle gear
and differential housing: 0.05～0.1mm

If the radial clearance exceeds the limit, check
34
the wear of the half axle gear and the
differential housing and replace them if
needed. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")

11 . Remove the Differential Bearing

(a) Remove 2 differential bearing inner rings from
the differential housing with a puller.

NOTICE

It is important to store the differential bearing
inner ring and the differential bearing outer ring
together. Store them by left/right separately.
