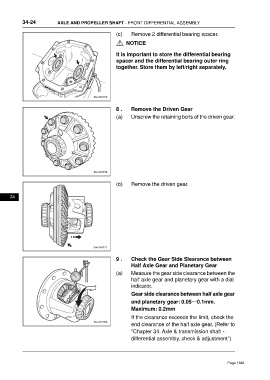

34-24 AXLE AND PROPELLER SHAFT - FRONT DIFFERENTIAL ASSEMBLY

(c) Remove 2 differential bearing spacer.

NOTICE

It is important to store the differential bearing
spacer and the differential bearing outer ring
together. Store them by left/right separately.

8 . Remove the Driven Gear
(a) Unscrew the retaining bolts of the driven gear.

(b) Remove the driven gear.

34

9 . Check the Gear Side Slearance between
Half Axle Gear and Planetary Gear

(a) Measure the gear side clearance between the
half axle gear and planetary gear with a dial
indicator.
Gear side clearance between half axle gear

and planetary gear: 0.05～0.1mm.
Maximum: 0.2mm
If the clearance exceeds the limit, check the
end clearance of the half axle gear. (Refer to
"Chapter 34. Axle & transmission shaft -
differential assembly, check & adjustment")
