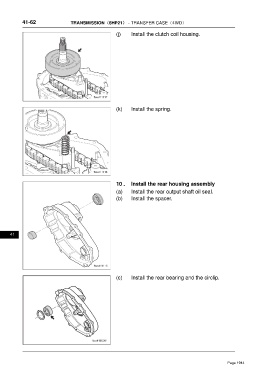

Page 1914 - Foton Workshop Manual - Tunland (AT)
P. 1914
41-62 TRANSMISSION（6HP21） - TRANSFER CASE（4WD）
(j) Install the clutch coil housing.
(k) Install the spring.
10 . Install the rear housing assembly
(a) Install the rear output shaft oil seal.
(b) Install the spacer.
41
(c) Install the rear bearing and the circlip.
Page 1914
