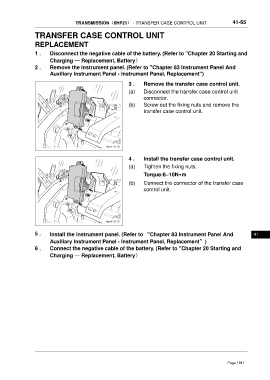

TRANSMISSION(6HP21) - TRANSFER CASE CONTROL UNIT 41-65
TRANSFER CASE CONTROL UNIT
REPLACEMENT
1 . Disconnect the negative cable of the battery. (Refer to "Chapter 20 Starting and
Charging — Replacement, Battery)
2 . Remove the instrument panel. (Refer to "Chapter 83 Instrument Panel And
Auxiliary Instrument Panel - Instrument Panel, Replacement")
3 . Remove the transfer case control unit.
(a) Disconnect the transfer case control unit
connector.
(b) Screw out the fixing nuts and remove the
transfer case control unit.
ftwx411110
4 . Install the transfer case control unit.
(a) Tighten the fixing nuts.
Torque:6~10N•m
(b) Connect the connector of the transfer case
control unit.
ftwx411110
5 . Install the instrument panel. (Refer to “Chapter 83 Instrument Panel And 41
Auxiliary Instrument Panel - Instrument Panel, Replacement”)
6 . Connect the negative cable of the battery. (Refer to "Chapter 20 Starting and
Charging — Replacement, Battery)
