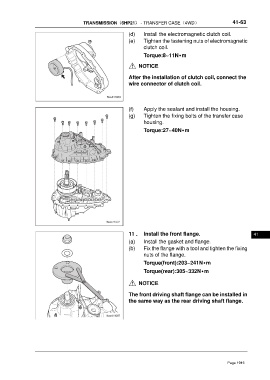

TRANSMISSION（6HP21） - TRANSFER CASE（4WD） 41-63

(d) Install the electromagnetic clutch coil.
(e) Tighten the fastening nuts of electromagnetic
clutch coil.
Torque:8~11N•m

NOTICE

After the installation of clutch coil, connect the
wire connector of clutch coil.

(f) Apply the sealant and install the housing.
(g) Tighten the fixing bolts of the transfer case
housing.
Torque:27~40N•m

11 . Install the front flange. 41
(a) Install the gasket and flange.
(b) Fix the flange with a tool and tighten the fixing
nuts of the flange.

Torque(front):203~241N•m
Torque(rear):305~332N•m

NOTICE

The front driving shaft flange can be installed in
the same way as the rear driving shaft flange.
