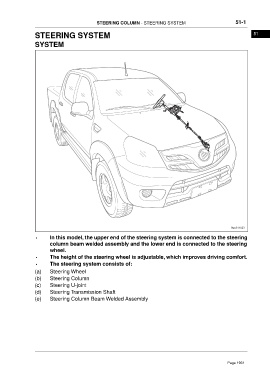

STEERING COLUMN - STEERING SYSTEM                              51-1

                 STEERING SYSTEM                                                                                     51

                 SYSTEM


















































                                                                                                          ftwx511023

                 •      In this model, the upper end of the steering system is connected to the steering
                        column beam welded assembly and the lower end is connected to the steering
                        wheel.
                 •      The height of the steering wheel is adjustable, which improves driving comfort.
                 •      The steering system consists of:
                 (a)    Steering Wheel
                 (b)    Steering Column
                 (c)    Steering U-joint
                 (d)    Steering Transmission Shaft
                 (e)    Steering Column Beam Welded Assembly
