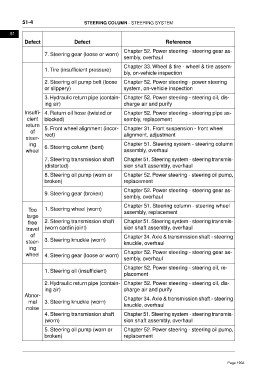

51-4 STEERING COLUMN - STEERING SYSTEM

51
Defect Defect Reference

Chapter 52. Power steering - steering gear as-
7. Steering gear (loose or worn)
sembly, overhaul
Chapter 33. Wheel & tire - wheel & tire assem-
1. Tire (insufficient pressure)
bly, on-vehicle inspection

2. Steering oil pump belt (loose Chapter 52. Power steering - power steering
or slippery) system, on-vehicle inspection

3. Hydraulic return pipe (contain- Chapter 52. Power steering - steering oil, dis-
ing air) charge air and purify
Insuffi- 4. Return oil hose (twisted or Chapter 52. Power steering - steering pipe as-
cient blocked) sembly, replacement
return
5. Front wheel alignment (incor- Chapter 31. Front suspension - front wheel
of
rect) alignment, adjustment
steer-
ing Chapter 51. Steering system - steering column
6. Steering column (bent)
wheel assembly, overhaul
7. Steering transmission shaft Chapter 51. Steering system - steering transmis-
(distorted) sion shaft assembly, overhaul

8. Steering oil pump (worn or Chapter 52. Power steering - steering oil pump,
broken) replacement
Chapter 52. Power steering - steering gear as-
9. Steering gear (broken)
sembly, overhaul

Chapter 51. Steering column - steering wheel
Too 1. Steering wheel (worn)
assembly, replacement
large
free 2. Steering transmission shaft Chapter 51. Steering system - steering transmis-
travel (worn cardin joint) sion shaft assembly, overhaul
of Chapter 34. Axle & transmission shaft - steering
steer- 3. Steering knuckle (worn) knuckle, overhaul
ing
Chapter 52. Power steering - steering gear as-
wheel 4. Steering gear (loose or worn)
sembly, overhaul
Chapter 52. Power steering - steering oil, re-
1. Steering oil (insufficient)
placement
2. Hydraulic return pipe (contain- Chapter 52. Power steering - steering oil, dis-
ing air) charge air and purify
Abnor-
Chapter 34. Axle & transmission shaft - steering
mal 3. Steering knuckle (worn)
knuckle, overhaul
noise
4. Steering transmission shaft Chapter 51. Steering system - steering transmis-
(worn) sion shaft assembly, overhaul
5. Steering oil pump (worn or Chapter 52. Power steering - steering oil pump,
broken) replacement
