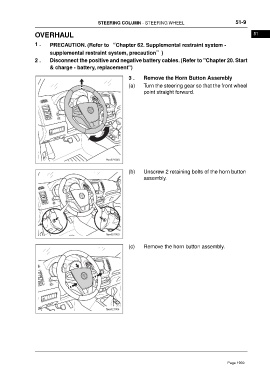

STEERING COLUMN - STEERING WHEEL                               51-9

                 OVERHAUL                                                                                            51

                 1 .    PRECAUTION. (Refer to “Chapter 62. Supplemental restraint system -
                        supplemental restraint system, precaution”)
                 2 .    Disconnect the positive and negative battery cables. (Refer to "Chapter 20. Start
                        & charge - battery, replacement")


                                                           3 .    Remove the Horn Button Assembly
                                                           (a)    Turn the steering gear so that the front wheel
                                                                  point straight forward.


















                                                 ftwx621040

                                                           (b)    Unscrew 2 retaining bolts of the horn button
                                                                  assembly.














                                                 ftwx621003

                                                           (c)    Remove the horn button assembly.
















                                                 ftwx621004
