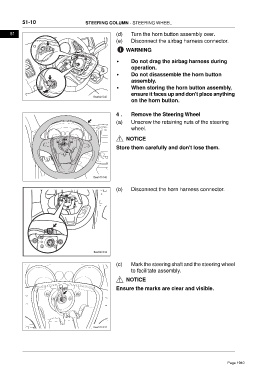

Page 1940 - Foton Workshop Manual - Tunland (AT)

51-10 STEERING COLUMN - STEERING WHEEL

51 (d) Turn the horn button assembly over.
(e) Disconnect the airbag harness connector.

WARNING

• Do not drag the airbag harness during
operation.
V
V
• Do not disassemble the horn button
assembly.
• When storing the horn button assembly,
ensure it faces up and don't place anything
ftwx621042
on the horn button.

4 . Remove the Steering Wheel
(a) Unscrew the retaining nuts of the steering
wheel.

NOTICE
Store them carefully and don't lose them.

ftwx511048

(b) Disconnect the horn harness connector.

(c) Mark the steering shaft and the steering wheel
to facilitate assembly.
NOTICE

Ensure the marks are clear and visible.

ftwx511047

Page 1940
