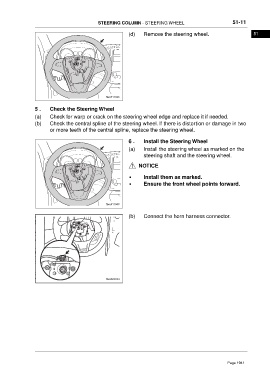

STEERING COLUMN - STEERING WHEEL 51-11

(d) Remove the steering wheel. 51

ftwx511048

5 . Check the Steering Wheel
(a) Check for warp or crack on the steering wheel edge and replace it if needed.
(b) Check the central spline of the steering wheel. If there is distortion or damage in two
or more teeth of the central spline, replace the steering wheel.

6 . Install the Steering Wheel

(a) Install the steering wheel as marked on the
steering shaft and the steering wheel.

NOTICE

• Install them as marked.
• Ensure the front wheel points forward.

ftwx511048

(b) Connect the horn harness connector.
