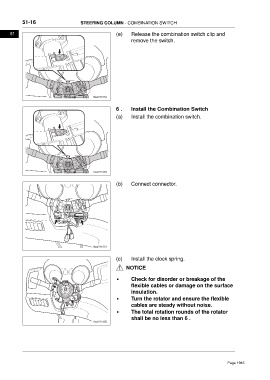

51-16                      STEERING COLUMN - COMBINATION SWITCH

      51                                              (e)    Release the combination switch clip and
                                                             remove the switch.














                                           ftwx511052

                                                      6 .    Install the Combination Switch
                                                      (a)    Install the combination switch.














                                           ftwx511052

                                                      (b)    Connect connector.
















                                           ftwx511051

                                                      (c)    Install the clock spring.

                                                           NOTICE

                                                      •      Check for disorder or breakage of the
                                                             flexible cables or damage on the surface
                                                             insulation.
                                                      •      Turn the rotator and ensure the flexible
                                                             cables are steady without noise.
                                                      •      The total rotation rounds of the rotator
                                                             shall be no less than 6 .
                                           ftwx511050
