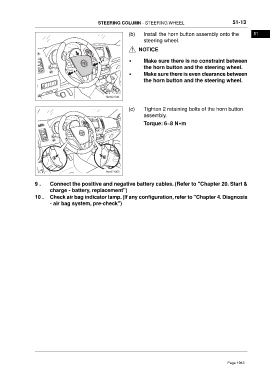

STEERING COLUMN - STEERING WHEEL                              51-13

                                                           (b)    Install the horn button assembly onto the          51
                                                                  steering wheel.
                                                                NOTICE


                                                           •      Make sure there is no constraint between
                                                                  the horn button and the steering wheel.
                                                           •      Make sure there is even clearance between
                                                                  the horn button and the steering wheel.



                                                 ftwx621044

                                                           (c)    Tighten 2 retaining bolts of the horn button
                                                                  assembly.
                                                                  Torque: 6~8 N•m












                                                 ftwx621003

                 9 .    Connect the positive and negative battery cables. (Refer to "Chapter 20. Start &
                        charge - battery, replacement")
                 10 .   Check air bag indicator lamp. (If any configuration, refer to "Chapter 4. Diagnosis
                        - air bag system, pre-check")
