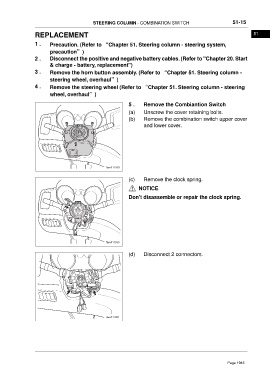

STEERING COLUMN - COMBINATION SWITCH 51-15

REPLACEMENT 51

1 . Precaution. (Refer to “Chapter 51. Steering column - steering system,
precaution”)
2 . Disconnect the positive and negative battery cables. (Refer to "Chapter 20. Start
& charge - battery, replacement")
3 . Remove the horn button assembly. (Refer to “Chapter 51. Steering column -
steering wheel, overhaul”)
4 . Remove the steering wheel (Refer to “Chapter 51. Steering column - steering
wheel, overhaul”)

5 . Remove the Combiantion Switch
(a) Unscrew the cover retaining bolts.
(b) Remove the combination switch upper cover
and lower cover.

ftwx511049

(c) Remove the clock spring.

NOTICE
Don't disassemble or repair the clock spring.

ftwx511050

(d) Disconnect 2 connectors.

ftwx511051
