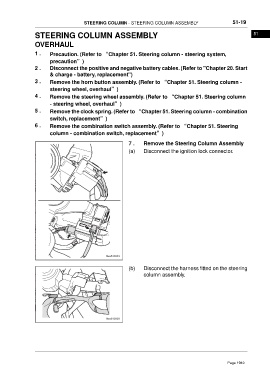

STEERING COLUMN - STEERING COLUMN ASSEMBLY 51-19

STEERING COLUMN ASSEMBLY 51

OVERHAUL
1 . Precaution. (Refer to “Chapter 51. Steering column - steering system,

precaution”)
2 . Disconnect the positive and negative battery cables. (Refer to "Chapter 20. Start
& charge - battery, replacement")
3 . Remove the horn button assembly. (Refer to “Chapter 51. Steering column -

steering wheel, overhaul”)
4 . Remove the steering wheel assembly. (Refer to “Chapter 51. Steering column
- steering wheel, overhaul”)
5 . Remove the clock spring. (Refer to “Chapter 51. Steering column - combination
switch, replacement”)
6 . Remove the combination switch assembly. (Refer to “Chapter 51. Steering
column - combination switch, replacement”)

7 . Remove the Steering Column Assembly
(a) Disconnect the ignition lock connector.

(b) Disconnect the harness fitted on the steering
column assembly.
