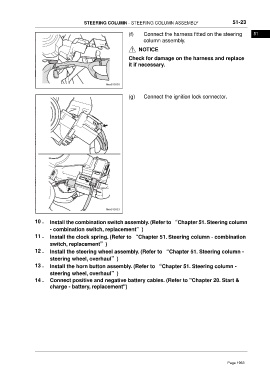

Page 1953 - Foton Workshop Manual - Tunland (AT)

STEERING COLUMN - STEERING COLUMN ASSEMBLY 51-23

(f) Connect the harness fitted on the steering 51
column assembly.
NOTICE

Check for damage on the harness and replace
it if necessary.

(g) Connect the ignition lock connector.

10 . Install the combination switch assembly. (Refer to “Chapter 51. Steering column
- combination switch, replacement”)
11 . Install the clock spring. (Refer to “Chapter 51. Steering column - combination
switch, replacement”)
12 . Install the steering wheel assembly. (Refer to “Chapter 51. Steering column -
steering wheel, overhaul”)
13 . Install the horn button assembly. (Refer to “Chapter 51. Steering column -

steering wheel, overhaul”)
14 . Connect positive and negative battery cables. (Refer to "Chapter 20. Start &
charge - battery, replacement")
