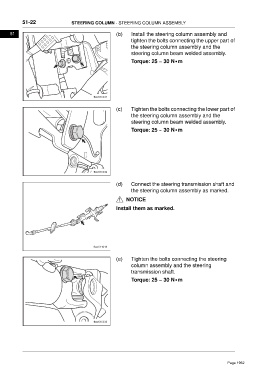

51-22 STEERING COLUMN - STEERING COLUMN ASSEMBLY

51 (b) Install the steering column assembly and
tighten the bolts connecting the upper part of
the steering column assembly and the
steering column beam welded assembly.

Torque: 25 ~ 30 N•m

(c) Tighten the bolts connecting the lower part of
the steering column assembly and the
steering column beam welded assembly.
Torque: 25 ~ 30 N•m

(d) Connect the steering transmission shaft and
the steering column assembly as marked.

NOTICE
Install them as marked.

(e) Tighten the bolts connecting the steering
column assembly and the steering
transmission shaft.
Torque: 25 ~ 30 N•m
