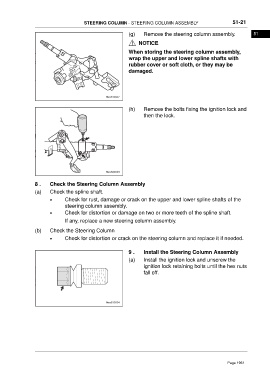

STEERING COLUMN - STEERING COLUMN ASSEMBLY 51-21

(g) Remove the steering column assembly. 51

NOTICE
When storing the steering column assembly,
wrap the upper and lower spline shafts with
rubber cover or soft cloth, or they may be
damaged.

(h) Remove the bolts fixing the ignition lock and
then the lock.

8 . Check the Steering Column Assembly

(a) Check the spline shaft.
• Check for rust, damage or crack on the upper and lower spline shafts of the
steering column assembly.
• Check for distortion or damage on two or more teeth of the spline shaft.
If any, replace a new steering column assembly.
(b) Check the Steering Column

• Check for distortion or crack on the steering column and replace it if needed.

9 . Install the Steering Column Assembly
(a) Install the ignition lock and unscrew the
ignition lock retaining bolts until the hex nuts
fall off.
