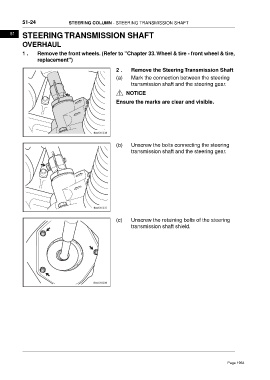

51-24 STEERING COLUMN - STEERING TRANSMISSION SHAFT

51
STEERING TRANSMISSION SHAFT
OVERHAUL
1 . Remove the front wheels. (Refer to "Chapter 33.Wheel & tire - front wheel & tire,
replacement")

2 . Remove the Steering Transmission Shaft
(a) Mark the connection between the steering
transmission shaft and the steering gear.

NOTICE
Ensure the marks are clear and visible.

(b) Unscrew the bolts connecting the steering
transmission shaft and the steering gear.

(c) Unscrew the retaining bolts of the steering
transmission shaft shield.
