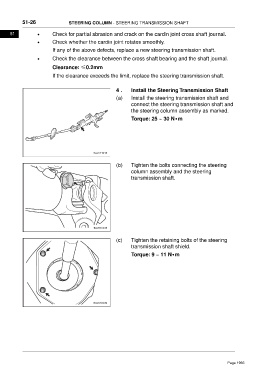

51-26 STEERING COLUMN - STEERING TRANSMISSION SHAFT

51 • Check for partial abrasion and crack on the cardin joint cross shaft journal.
• Check whether the cardin joint rotates smoothly.

If any of the above defects, replace a new steering transmission shaft.
• Check the clearance between the cross shaft bearing and the shaft journal.
Clearance: ≤0.2mm

If the clearance exceeds the limit, replace the steering transmission shaft.

4 . Install the Steering Transmission Shaft
(a) Install the steering transmission shaft and
connect the steering transmission shaft and
the steering column assembly as marked.
Torque: 25 ~ 30 N•m

(b) Tighten the bolts connecting the steering
column assembly and the steering
transmission shaft.

(c) Tighten the retaining bolts of the steering
transmission shaft shield.
Torque: 9 ~ 11 N•m
