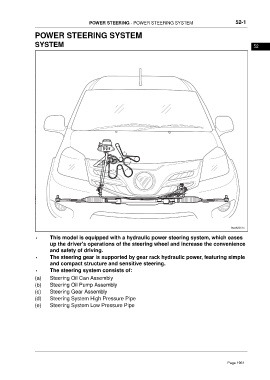

POWER STEERING - POWER STEERING SYSTEM 52-1
POWER STEERING SYSTEM
SYSTEM 52
• This model is equipped with a hydraulic power steering system, which eases
up the driver's operations of the steering wheel and increase the convenience
and safety of driving.
• The steering gear is supported by gear rack hydraulic power, featuring simple
and compact structure and sensitive steering.
• The steering system consists of:
(a) Steering Oil Can Assembly
(b) Steering Oil Pump Assembly
(c) Steering Gear Assembly
(d) Steering System High Pressure Pipe
(e) Steering System Low Pressure Pipe
