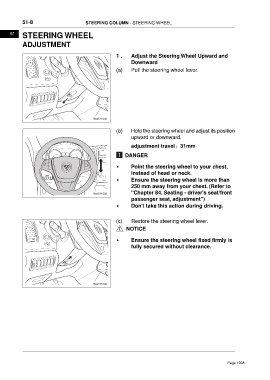

51-8                         STEERING COLUMN - STEERING WHEEL

      51
           STEERING WHEEL
           ADJUSTMENT

                                                      1 .    Adjust the Steering Wheel Upward and
                                                             Downward
                                                      (a)    Pull the steering wheel lever.












                                           ftwx511042

                                                      (b)    Hold the steering wheel and adjust its position
                                                             upward or downward.

                                                             adjustment travel：31mm
                                                          DANGER


                                                      •      Point the steering wheel to your chest,
                                                             instead of head or neck.
                                                      •      Ensure the steering wheel is more than
                                                             250 mm away from your chest. (Refer to
                                           ftwx511040        "Chapter 84. Seating - driver's seat/front
                                                             passenger seat, adjustment")
                                                      •      Don't take this action during driving.


                                                      (c)    Restore the steering wheel lever.
                                                           NOTICE

                                                      •      Ensure the steering wheel fixed firmly is
                                                             fully secured without clearance.









                                           ftwx511044
