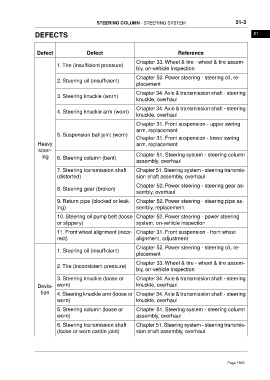

STEERING COLUMN - STEERING SYSTEM 51-3
DEFECTS 51
Defect Defect Reference
Chapter 33. Wheel & tire - wheel & tire assem-
1. Tire (insufficient pressure)
bly, on-vehicle inspection
Chapter 52. Power steering - steering oil, re-
2. Steering oil (insufficient)
placement
Chapter 34. Axle & transmission shaft - steering
3. Steering knuckle (worn)
knuckle, overhaul
Chapter 34. Axle & transmission shaft - steering
4. Steering knuckle arm (worn)
knuckle, overhaul
Chapter 31. Front suspension - upper swring
arm, replacement
5. Suspension ball joint (worn)
Chapter 31. Front suspension - lower swring
Heavy arm, replacement
steer-
ing 6. Steering column (bent) Chapter 51. Steering system - steering column
assembly, overhaul
7. Steering transmission shaft Chapter 51. Steering system - steering transmis-
(distorted) sion shaft assembly, overhaul
Chapter 52. Power steering - steering gear as-
8. Steering gear (broken)
sembly, overhaul
9. Return pipe (blocked or leak- Chapter 52. Power steering - steering pipe as-
ing) sembly, replacement
10. Steering oil pump belt (loose Chapter 52. Power steering - power steering
or slippery) system, on-vehicle inspection
11. Front wheel alignment (incor- Chapter 31. Front suspension - front wheel
rect) alignment, adjustment
Chapter 52. Power steering - steering oil, re-
1. Steering oil (insufficient)
placement
Chapter 33. Wheel & tire - wheel & tire assem-
2. Tire (inconsistent pressure)
bly, on-vehicle inspection
3. Steering knuckle (loose or Chapter 34. Axle & transmission shaft - steering
Devia- worn) knuckle, overhaul
tion 4. Steering knuckle arm (loose or Chapter 34. Axle & transmission shaft - steering
worn) knuckle, overhaul
5. Steering column (loose or Chapter 51. Steering system - steering column
worn) assembly, overhaul
6. Steering transmission shaft Chapter 51. Steering system - steering transmis-
(loose or worn cardin joint) sion shaft assembly, overhaul
