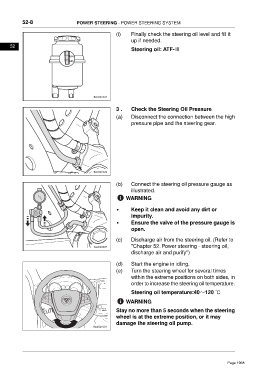

Page 1968 - Foton Workshop Manual - Tunland (AT)

52-8 POWER STEERING - POWER STEERING SYSTEM

(i) Finally check the steering oil level and fill it
up if needed.
52
Steering oil: ATF-Ⅲ

3 . Check the Steering Oil Pressure
(a) Disconnect the connection between the high
pressure pipe and the steering gear.

(b) Connect the steering oil pressure gauge as
illustrated.
WARNING

• Keep it clean and avoid any dirt or
impurity.
• Ensure the valve of the pressure gauge is
open.

(c) Discharge air from the steering oil. (Refer to
"Chapter 52. Power steering - steering oil,
discharge air and purify")

(d) Start the engine in idling.
(e) Turn the steering wheel for several times
within the extreme positions on both sides, in
order to increase the steering oil temperature.
Steering oil temperature:40～120 ℃

WARNING
Stay no more than 5 seconds when the steering
wheel is at the extreme position, or it may
damage the steering oil pump.
ftwx521001
