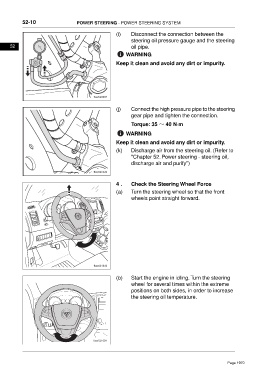

52-10 POWER STEERING - POWER STEERING SYSTEM

(i) Disconnect the connection between the
steering oil pressure gauge and the steering
52 oil pipe.
WARNING
Keep it clean and avoid any dirt or impurity.

(j) Connect the high pressure pipe to the steering
gear pipe and tighten the connection.
Torque: 35 ～ 40 N·m

WARNING

Keep it clean and avoid any dirt or impurity.
(k) Discharge air from the steering oil. (Refer to
"Chapter 52. Power steering - steering oil,
discharge air and purify")

4 . Check the Steering Wheel Force

(a) Turn the steering wheel so that the front
wheels point straight forward.

ftwx621040

(b) Start the engine in idling. Turn the steering
wheel for several times within the extreme
positions on both sides, in order to increase
the steering oil temperature.

ftwx521001
