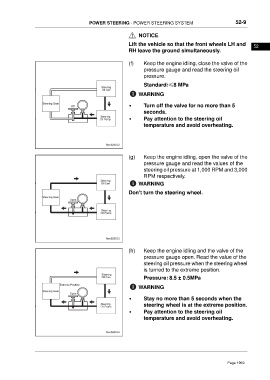

POWER STEERING - POWER STEERING SYSTEM 52-9

NOTICE
Lift the vehicle so that the front wheels LH and
52
RH leave the ground simultaneously.

(f) Keep the engine idling, close the valve of the
pressure gauge and read the steering oil
pressure.
Standard:≤8 MPa

WARNING

• Turn off the valve for no more than 5
seconds.
• Pay attention to the steering oil
temperature and avoid overheating.

(g) Keep the engine idling, open the valve of the
pressure gauge and read the values of the
steering oil pressure at 1,000 RPM and 3,000
RPM respectively.
WARNING

Don't turn the steering wheel.

(h) Keep the engine idling and the valve of the
pressure gauge open. Read the value of the
steering oil pressure when the steering wheel
is turned to the extreme position.
Pressure: 8.5 ± 0.5MPa

WARNING

• Stay no more than 5 seconds when the
steering wheel is at the extreme position.
• Pay attention to the steering oil
temperature and avoid overheating.
