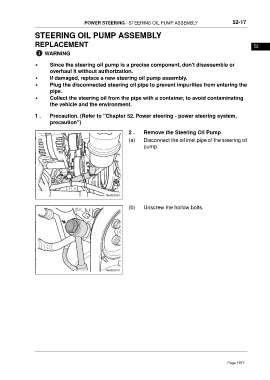

POWER STEERING - STEERING OIL PUMP ASSEMBLY 52-17

STEERING OIL PUMP ASSEMBLY

REPLACEMENT 52
WARNING

• Since the steering oil pump is a precise component, don't disassemble or
overhaul it without authorization.
• If damaged, replace a new steering oil pump assembly.
• Plug the disconnected steering oil pipe to prevent impurities from entering the
pipe.
• Collect the steering oil from the pipe with a container, to avoid contaminating
the vehicle and the environment.

1 . Precaution. (Refer to "Chapter 52. Power steering - power steering system,
precaution")

2 . Remove the Steering Oil Pump
(a) Disconnect the oil inlet pipe of the steering oil
pump.

(b) Unscrew the hollow bolts.
