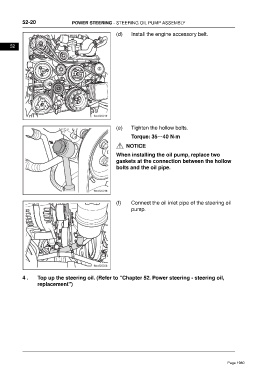

52-20 POWER STEERING - STEERING OIL PUMP ASSEMBLY
(d) Install the engine accessory belt.
52
(e) Tighten the hollow bolts.
Torque: 35～40 N·m
NOTICE
When installing the oil pump, replace two
gaskets at the connection between the hollow
bolts and the oil pipe.
(f) Connect the oil inlet pipe of the steering oil
pump.
4 . Top up the steering oil. (Refer to "Chapter 52. Power steering - steering oil,
replacement")
