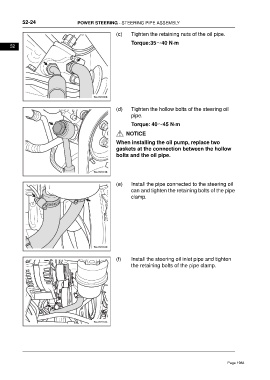

52-24 POWER STEERING - STEERING PIPE ASSEMBLY
(c) Tighten the retaining nuts of the oil pipe.
Torque:35～40 N·m
52
(d) Tighten the hollow bolts of the steering oil
pipe.
Torque: 40～45 N·m
NOTICE
When installing the oil pump, replace two
gaskets at the connection between the hollow
bolts and the oil pipe.
(e) Install the pipe connected to the steering oil
can and tighten the retaining bolts of the pipe
clamp.
(f) Install the steering oil inlet pipe and tighten
the retaining bolts of the pipe clamp.
