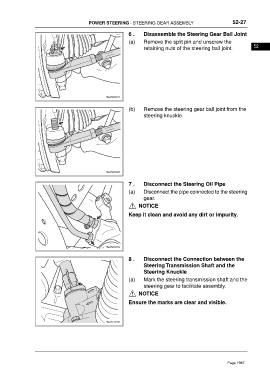

POWER STEERING - STEERING GEAR ASSEMBLY 52-27

6 . Disassemble the Steering Gear Ball Joint
(a) Remove the split pin and unscrew the
retaining nuts of the steering ball joint. 52

(b) Remove the steering gear ball joint from the
steering knuckle.

7 . Disconnect the Steering Oil Pipe

(a) Disconnect the pipe connected to the steering
gear.

NOTICE
Keep it clean and avoid any dirt or impurity.

8 . Disconnect the Connection between the
Steering Transmission Shaft and the
Steering Knuckle
(a) Mark the steering transmission shaft and the
steering gear to facilitate assembly.
NOTICE

Ensure the marks are clear and visible.
