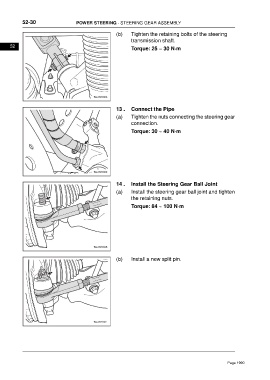

52-30 POWER STEERING - STEERING GEAR ASSEMBLY
(b) Tighten the retaining bolts of the steering
transmission shaft.
52
Torque: 25 ~ 30 N·m
13 . Connect the Pipe
(a) Tighten the nuts connecting the steering gear
connection.
Torque: 30 ~ 40 N·m
14 . Install the Steering Gear Ball Joint
(a) Install the steering gear ball joint and tighten
the retaining nuts.
Torque: 84 ~ 100 N·m
(b) Install a new split pin.
