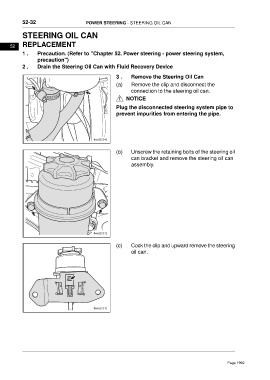

Page 1992 - Foton Workshop Manual - Tunland (AT)

52-32 POWER STEERING - STEERING OIL CAN

STEERING OIL CAN

REPLACEMENT
52
1 . Precaution. (Refer to "Chapter 52. Power steering - power steering system,
precaution")
2 . Drain the Steering Oil Can with Fluid Recovery Device

3 . Remove the Steering Oil Can
(a) Remove the clip and disconnect the
connection to the steering oil can.
NOTICE

Plug the disconnected steering system pipe to
prevent impurities from entering the pipe.

(b) Unscrew the retaining bolts of the steering oil
can bracket and remove the steering oil can
assembly.

(c) Cock the clip and upward remove the steering
oil can.

Page 1992
