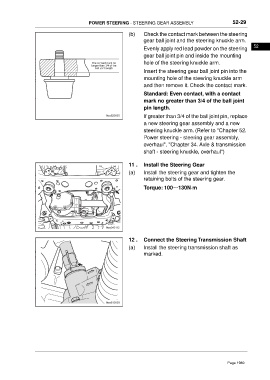

POWER STEERING - STEERING GEAR ASSEMBLY 52-29

(b) Check the contact mark between the steering
gear ball joint and the steering knuckle arm.
52
Evenly apply red lead powder on the steering
gear ball joint pin and inside the mounting
hole of the steering knuckle arm.

Insert the steering gear ball joint pin into the
mounting hole of the steering knuckle arm
and then remove it. Check the contact mark.
Standard: Even contact, with a contact
mark no greater than 3/4 of the ball joint
pin length.
If greater than 3/4 of the ball joint pin, replace
a new steering gear assembly and a new
steering knuckle arm. (Refer to "Chapter 52.
Power steering - steering gear assembly,
overhaul", "Chapter 34. Axle & transmission
shaft - steering knuckle, overhaul")

11 . Install the Steering Gear
(a) Install the steering gear and tighten the
retaining bolts of the steering gear.
Torque: 100～130N·m

12 . Connect the Steering Transmission Shaft
(a) Install the steering transmission shaft as
marked.
