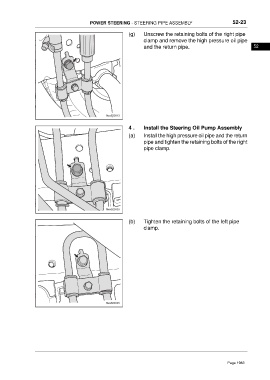

POWER STEERING - STEERING PIPE ASSEMBLY 52-23
(g) Unscrew the retaining bolts of the right pipe
clamp and remove the high pressure oil pipe
and the return pipe. 52
4 . Install the Steering Oil Pump Assembly
(a) Install the high pressure oil pipe and the return
pipe and tighten the retaining bolts of the right
pipe clamp.
(b) Tighten the retaining bolts of the left pipe
clamp.
