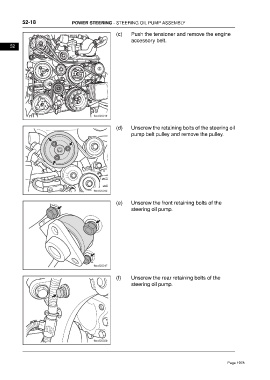

52-18                  POWER STEERING - STEERING OIL PUMP ASSEMBLY

                                                      (c)    Push the tensioner and remove the engine
                                                             accessory belt.
      52





















                                                      (d)    Unscrew the retaining bolts of the steering oil
                                                             pump belt pulley and remove the pulley.


















                                                      (e)    Unscrew the front retaining bolts of the
                                                             steering oil pump.


















                                                      (f)    Unscrew the rear retaining bolts of the
                                                             steering oil pump.
