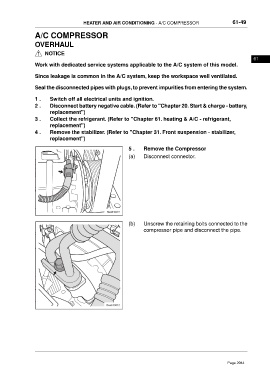

HEATER AND AIR CONDITIONING - A/C COMPRESSOR 61-49

A/C COMPRESSOR

OVERHAUL
NOTICE
61
Work with dedicated service systems applicable to the A/C system of this model.

Since leakage is common in the A/C system, keep the workspace well ventilated.

Seal the disconnected pipes with plugs, to prevent impurities from entering the system.

1 . Switch off all electrical units and ignition.
2 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
3 . Collect the refrigerant. (Refer to "Chapter 61. heating & A/C - refrigerant,
replacement")
4 . Remove the stabilizer. (Refer to "Chapter 31. Front suspension - stabilizer,
replacement")
5 . Remove the Compressor

(a) Disconnect connector.

(b) Unscrew the retaining bolts connected to the
compressor pipe and disconnect the pipe.
