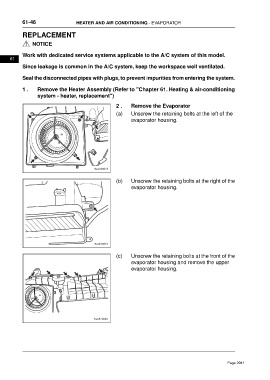

Page 2041 - Foton Workshop Manual - Tunland (AT)

61-46 HEATER AND AIR CONDITIONING - EVAPORATOR

REPLACEMENT

NOTICE

Work with dedicated service systems applicable to the A/C system of this model.
61
Since leakage is common in the A/C system, keep the workspace well ventilated.

Seal the disconnected pipes with plugs, to prevent impurities from entering the system.

1 . Remove the Heater Assembly (Refer to "Chapter 61. Heating & air-conditioning
system - heater, replacement")

2 . Remove the Evaporator

(a) Unscrew the retaining bolts at the left of the
evaporator housing.

(b) Unscrew the retaining bolts at the right of the
evaporator housing.

(c) Unscrew the retaining bolts at the front of the
evaporator housing and remove the upper
evaporator housing.
