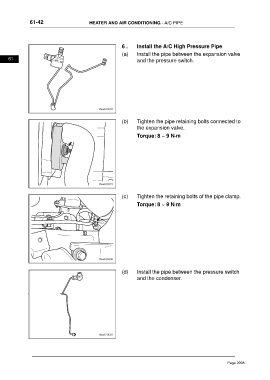

61-42 HEATER AND AIR CONDITIONING - A/C PIPE
6 . Install the A/C High Pressure Pipe
(a) Install the pipe between the expansion valve
61
and the pressure switch.
(b) Tighten the pipe retaining bolts connected to
the expansion valve.
Torque: 8 ~ 9 N·m
(c) Tighten the retaining bolts of the pipe clamp.
Torque: 8 ~ 9 N·m
(d) Install the pipe between the pressure switch
and the condenser.
