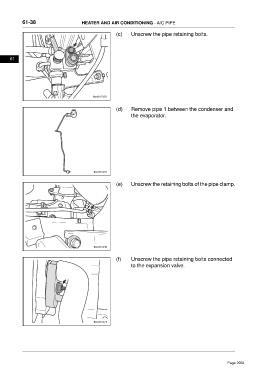

61-38 HEATER AND AIR CONDITIONING - A/C PIPE
(c) Unscrew the pipe retaining bolts.
61
(d) Remove pipe 1 between the condenser and
the evaporator.
(e) Unscrew the retaining bolts of the pipe clamp.
(f) Unscrew the pipe retaining bolts connected
to the expansion valve.
