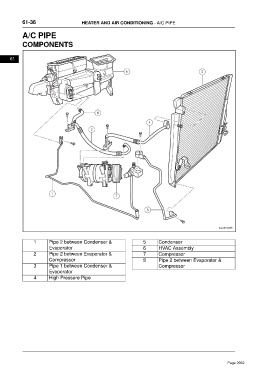

61-36 HEATER AND AIR CONDITIONING - A/C PIPE
A/C PIPE
COMPONENTS
61
1 Pipe 2 between Condenser & 5 Condenser
Evaporator 6 HVAC Assembly
2 Pipe 2 between Evaporator & 7 Compressor
Compressor 8 Pipe 2 between Evaporator &
3 Pipe 1 between Condenser & Compressor
Evaporator
4 High Pressure Pipe
