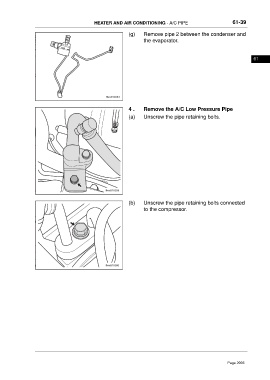

HEATER AND AIR CONDITIONING - A/C PIPE 61-39
(g) Remove pipe 2 between the condenser and
the evaporator.
61
4 . Remove the A/C Low Pressure Pipe
(a) Unscrew the pipe retaining bolts.
(b) Unscrew the pipe retaining bolts connected
to the compressor.
