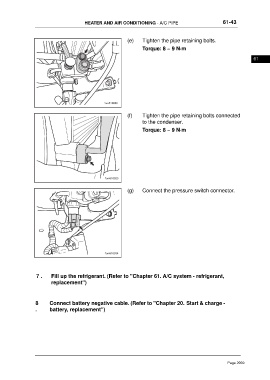

HEATER AND AIR CONDITIONING - A/C PIPE 61-43
(e) Tighten the pipe retaining bolts.
Torque: 8 ~ 9 N·m
61
(f) Tighten the pipe retaining bolts connected
to the condenser.
Torque: 8 ~ 9 N·m
(g) Connect the pressure switch connector.
7 . Fill up the refrigerant. (Refer to "Chapter 61. A/C system - refrigerant,
replacement")
8 Connect battery negative cable. (Refer to "Chapter 20. Start & charge -
. battery, replacement")
