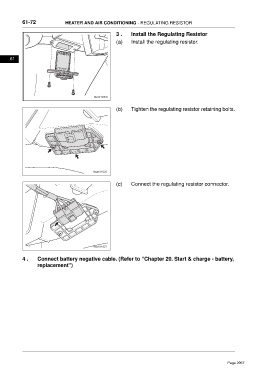

61-72               HEATER AND AIR CONDITIONING - REGULATING RESISTOR

                                                      3 .    Install the Regulating Resistor
                                                      (a)    Install the regulating resistor.



      61












                                                      (b)    Tighten the regulating resistor retaining bolts.
















                                           ftwx611028

                                                      (c)    Connect the regulating resistor connector.
















                                           ftwx611027

           4 .    Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                  replacement")
