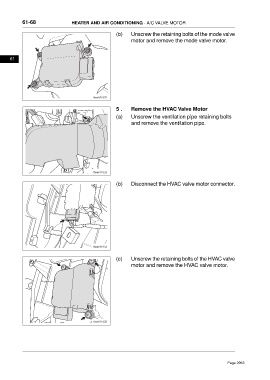

61-68 HEATER AND AIR CONDITIONING - A/C VALVE MOTOR
(b) Unscrew the retaining bolts of the mode valve
motor and remove the mode valve motor.
61
ftwx611032
5 . Remove the HVAC Valve Motor
(a) Unscrew the ventilation pipe retaining bolts
and remove the ventilation pipe.
ftwx611033
(b) Disconnect the HVAC valve motor connector.
ftwx611034
(c) Unscrew the retaining bolts of the HVAC valve
motor and remove the HVAC valve motor.
ftwx611035
