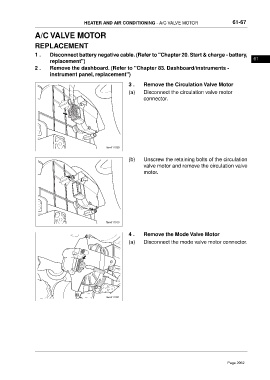

HEATER AND AIR CONDITIONING - A/C VALVE MOTOR 61-67
A/C VALVE MOTOR
REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
61
replacement")
2 . Remove the dashboard. (Refer to "Chapter 83. Dashboard/instruments -
instrument panel, replacement")
3 . Remove the Circulation Valve Motor
(a) Disconnect the circulation valve motor
connector.
ftwx611029
(b) Unscrew the retaining bolts of the circulation
valve motor and remove the circulation valve
motor.
ftwx611030
4 . Remove the Mode Valve Motor
(a) Disconnect the mode valve motor connector.
ftwx611031
