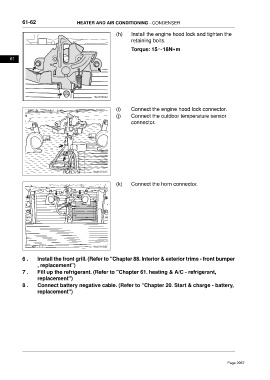

Page 2057 - Foton Workshop Manual - Tunland (AT)
P. 2057
61-62 HEATER AND AIR CONDITIONING - CONDENSER
(h) Install the engine hood lock and tighten the
retaining bolts.
Torque: 15～18N•m
61
(i) Connect the engine hood lock connector.
(j) Connect the outdoor temperature sensor
connector.
ftwx611041
(k) Connect the horn connector.
ftwx611040
6 . Install the front grill. (Refer to "Chapter 88. Interior & exterior trims - front bumper
, replacement")
7 . Fill up the refrigerant. (Refer to "Chapter 61. heating & A/C - refrigerant,
replacement")
8 . Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
Page 2057
