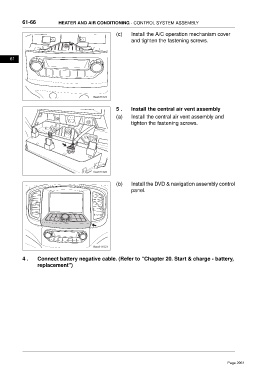

Page 2061 - Foton Workshop Manual - Tunland (AT)
P. 2061
61-66 HEATER AND AIR CONDITIONING - CONTROL SYSTEM ASSEMBLY
(c) Install the A/C operation mechanism cover
and tighten the fastening screws.
61
ftwx611023
5 . Install the central air vent assembly
(a) Install the central air vent assembly and
tighten the fastening screws.
ftwx611022
(b) Install the DVD & navigation assembly control
panel.
ftwx611021
4 . Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
Page 2061
