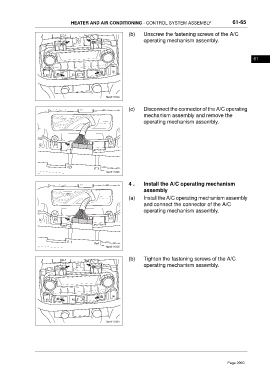

HEATER AND AIR CONDITIONING - CONTROL SYSTEM ASSEMBLY 61-65
(b) Unscrew the fastening screws of the A/C
operating mechanism assembly.
61
ftwx611024
(c) Disconnect the connector of the A/C operating
mechanism assembly and remove the
operating mechanism assembly.
ftwx611026
4 . Install the A/C operating mechanism
assembly
(a) Install the A/C operating mechanism assembly
and connect the connector of the A/C
operating mechanism assembly.
ftwx611026
(b) Tighten the fastening screws of the A/C
operating mechanism assembly.
ftwx611024
