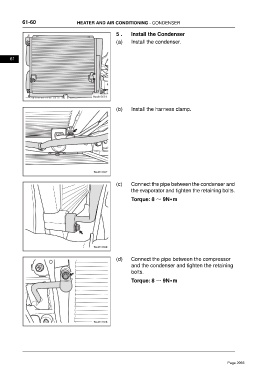

61-60 HEATER AND AIR CONDITIONING - CONDENSER

5 . Install the Condenser
(a) Install the condenser.

61

(b) Install the harness clamp.

(c) Connect the pipe between the condenser and
the evaporator and tighten the retaining bolts.

Torque: 8 ～ 9N•m

(d) Connect the pipe between the compressor
and the condenser and tighten the retaining
bolts.

Torque: 8 ～ 9N•m

Page 2055
