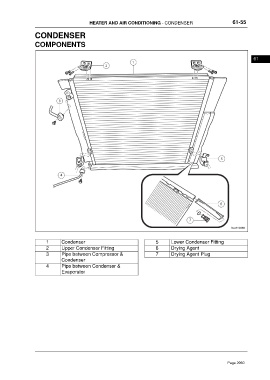

HEATER AND AIR CONDITIONING - CONDENSER 61-55
CONDENSER
COMPONENTS
61
1 Condenser 5 Lower Condenser Fitting
2 Upper Condenser Fitting 6 Drying Agent
3 Pipe between Compressor & 7 Drying Agent Plug
Condenser
4 Pipe between Condenser &
Evaporator
